Hefei Shanchuan Haize Wanxiang Technology Co., Ltd. (a wholly-owned subsidiary of Shenzhen Shanchuan Robotics Co., Ltd.) is a company engaged in the R&D of mechanical equipment, motors, and their control systems. To meet the company's requirements for product quality and acoustic testing, and to further improve its product inspection capabilities and laboratory environment, Hefei Shanchuan Haize Wanxiang Technology Co., Ltd. launched a tender for an air conditioner anechoic chamber project. Guangzhou DP Anechoic T&E Co., Ltd. successfully won the bid for this project.

Guangzhou DP Anechoic T&E Co.,Ltd.is composed of a group of domestic and foreign acoustic experts and professional engineers who have been engaged in various acoustic technology research for many years and have rich theoretical and practical experience. It has its own office buildings and factories, and the factory has acoustic laboratories in line with CNAS standards, which can monitor the acoustic technical indicators of its own products and carry out acoustic testing services. Through the hard work and continuous innovation and development of Danpin team, the acoustics laboratory designed, produced and installed by Danpin has products with accurate technical indicators, green environmental protection, durable quality, beautiful appearance and high scientific and technological content.GZ DC Acoustic Technology Research Co., Ltd., an affiliated company of GZ DP, is a high - tech company specialized in the research and development of acoustic testing instruments. The acoustic environment provided by DP can be perfectly and seamlessly integrated with the testing instruments of DC. Therefore, it can offer a complete solution for acoustic laboratories.

Keywords：

Acoustic Laboratory , Acoustic room;Anechoic chamber，Anechoic room；Semi-anechoic chamber，Semi-anechoic room；Hemi-anechoic chamber，Hemi-anechoic room；Fully anechoic chamber，Fully anechoic room；Professional anechoic chamber；Professional semi-anechoic chamber ,Professional hemi-anechoic chamber；Professional full anechoic chamber ;soundproof room (sound insulation room, soundproof chamber, silent room)；Sound insulation box； reverberation chamber；Listening room (listening chamber, sound listening room)；Anechoic room (noiseless room)；Silent room (soundproof room)，Noise-proof room；Noise room (noise chamber)，Noise generation room；Airborne sound insulation laboratory；Floor impact sound insulation laboratory；Automotive NVH laboratory；acoustic measuring instruments；vibration measuring instruments；Semi-anechoic chamber plan / Scheme for semi-anechoic chamber；Acoustic Testing Equipment，Acoustic Test Devices；Anechoic chamber manufacturers；Acoustic Engineering，Acoustical Engineering；Institute of Acoustics；Semi-anechoic chamber design；Full anechoic chamber design；Online sound insulation chamber，Online acoustic isolation chamber.

I.Procurement content

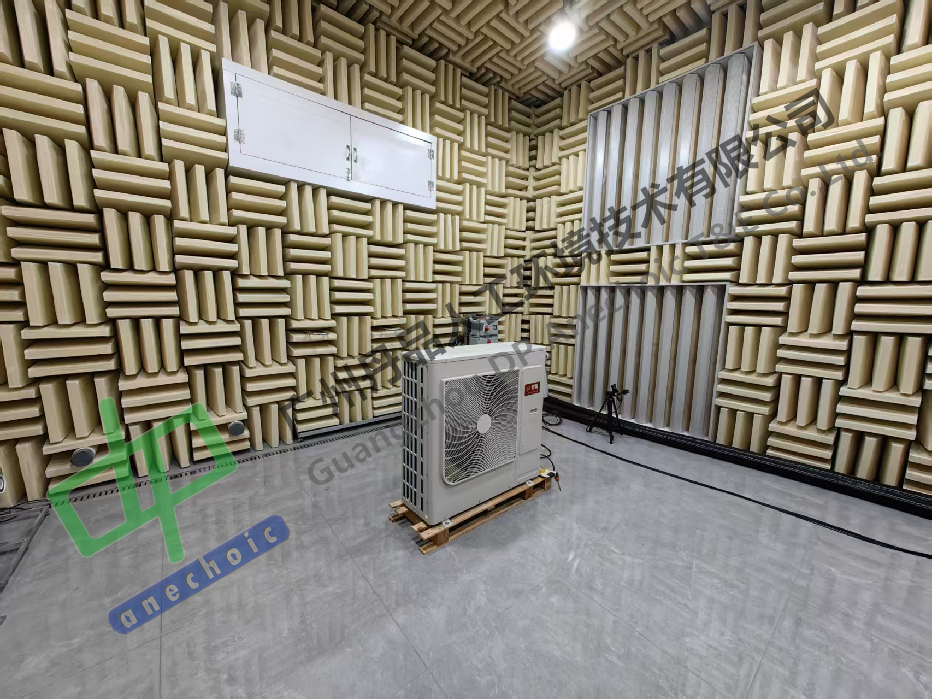

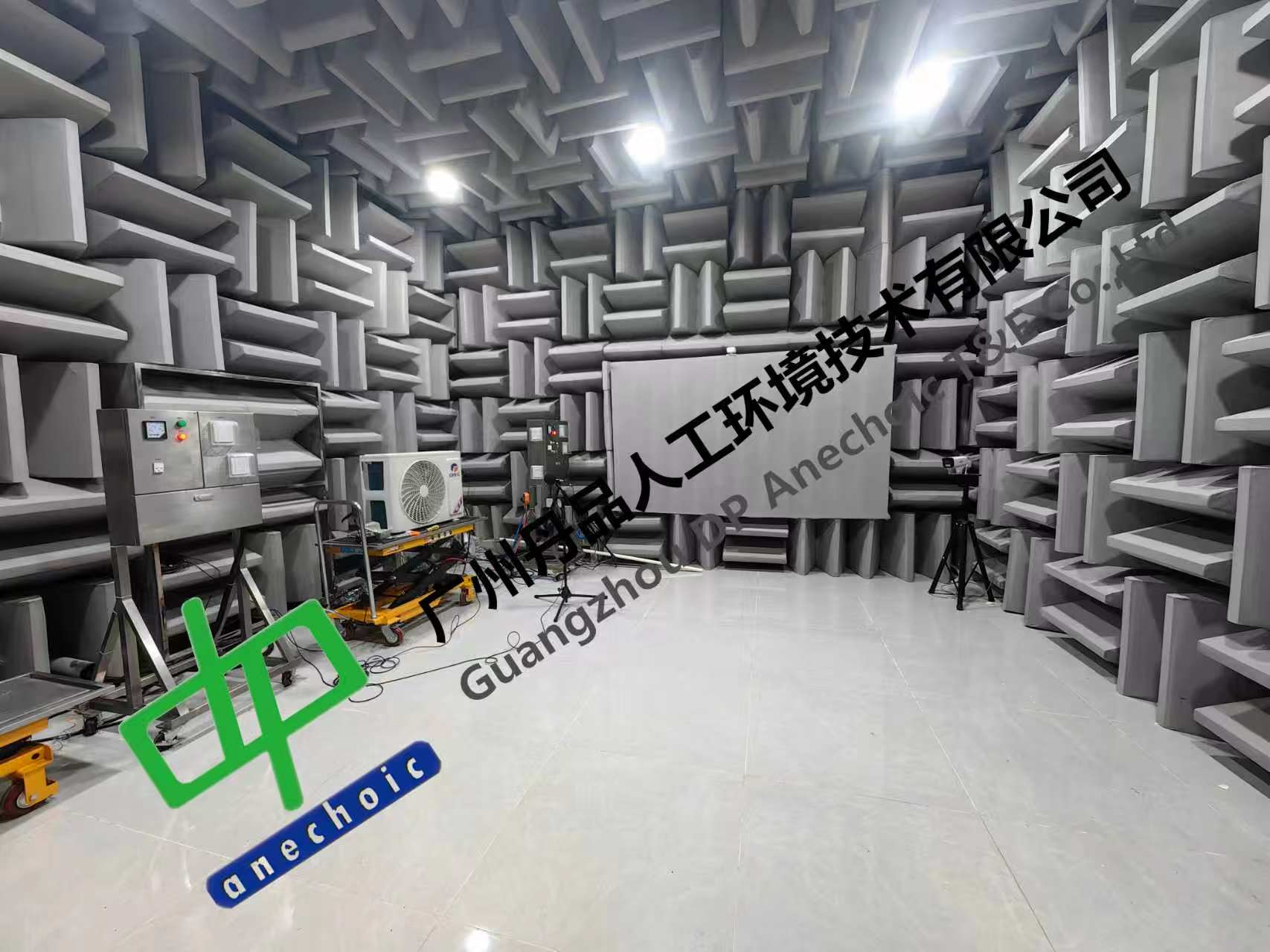

Air conditioner noise room；

（Schematic diagram of air conditioner noise room）

II.According to the standard

（1）GB/T 6882 "Acoustic noise source sound power level determination anechoic chamber and full anechoic chamber precision method"

（2）ISO3745 "Acoustics - Determination of sound power level of noise source - Precision determination method of anechoic chamber and total anechoic chamber"

（3）GB/T 17758-2010、GB/T 7725-2004、GB/T 18837-2002、GB/T 19606-2016

III.Main indicators and project contents

When the external ambient noise: Len(A) ≤ 75dB(A), there is no abnormal interference in the surroundings (such as ground pounding, driving, impact), and the unit is turned off, the indoor background noise of the air conditioning noise room: Lgn(A) ≤ 17dB(A when the unit is running at low-speed air supply, the background noise: Lgn(A) ≤ 20dB(A).

Cut-off frequency: Fc≤100Hz.

Meet the indoor background noise value Lgn(A), sound insulation, sound absorption and noise reduction, dimensions, and other relevant details agreed upon by both parties

IV.Working Condition Simulation System

An independent temperature/humidity conditioning system is specified for rated cooling/heating, high- and low-temperature operation, freezing, condensation and automatic defrosting. Performance requirements apply under specified no-load and maximum 5HP-load conditions (without electric heating).

Note: These conditions apply to both no-load and maximum 5HP load operation (without electric heating). Target-condition attainment times are evaluated from an initial temperature of 20°C. Specific setpoints and uncontrolled-humidity cases follow the technical specification.

V.Siemens 12-Channel Noise and Vibration Testing System

The project specifies Siemens Simcenter SCADAS XS 12-channel noise and vibration acquisition hardware and Simcenter Testlab (LMS Test.Lab) analysis software, together with six PCB free-field microphones, twelve 15 m microphone cables, one triaxial accelerometer and one dedicated cable. The integrated system supports acoustic and vibration data acquisition for air-conditioner NVH evaluation; available analysis functions depend on the final software license.
